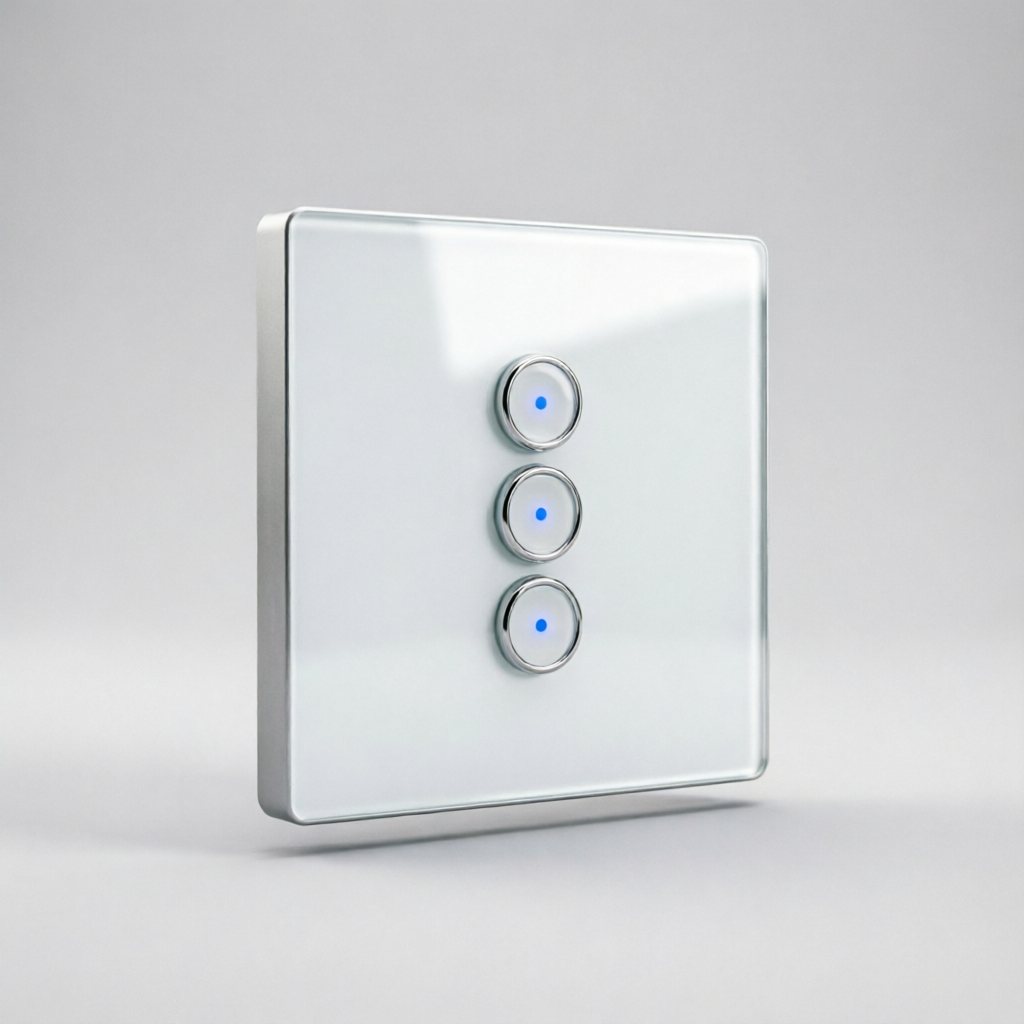

3-Gang Wi‑Fi Touch Switch
SKU: PL-SW-T3-WIFI-86 · Series PL-SW-T · Family: 1 / 2 / 3 / 4 gang
| Category | Smart wall switch (traffic anchor) |
|---|---|
| Frame / plate | 86-type standard; EU / US plate variants on request |
| Gangs | 3 independent channels |
| Rated voltage | 100–240V AC, 50/60 Hz |
| Wiring | Neutral preferred; no-neutral option (indicative — confirm load type) |
| Max load (indicative) | Per gang: LED ≤200W / resistive ≤800W — confirm datasheet |
| Protocol | Wi‑Fi 2.4 GHz · Tuya / Smart Life app narrative |
| Voice | Alexa / Google Home via cloud ecosystem |
| Panel material | Tempered glass + PC frame; white / black options |
| Operating temp | −10…+45°C (indicative indoor) |
| MOQ (sample trade) | Sample 1–10 pcs; bulk MOQ factory-dependent |
CE (sample narrative)
RoHS (sample narrative)
FCC RF narrative
OEM print OK
Certificate numbers are not listed on purpose — attach market + SKU on RFQ for a real cert pack.
Overview for sourcing buyers
PL-SW-T3-WIFI-86 is the sample hero SKU for the traffic anchor (smart wall switches). It is aimed at residential distributors, apartment fit-out packages and light commercial corridors where a hub-free Wi‑Fi install is preferred over Zigbee mesh.
As a trading platform SKU, the same mechanical family can be sourced as 1–4 gang, with or without neutral, and with glass colour / logo print options — factories differ; the RFQ should lock frame, wiring and app brand before price is firm.
Buyer fit: EU/Asia 86-box markets first; for US/UK plates request the matching series in the same RFQ line. Pair with a gateway only if you will add sensors or curtain modules later.
What you get in a typical trade shipment
- Switch unit + mounting screws + multi-language quick card (language set on OEM order)
- Optional gift box or bulk carton with your barcode
- App pairing guide PDF (brand-dependent)
- On request: test report summary, packing list by factory lot
Extended specification (indicative)
| SKU | PL-SW-T3-WIFI-86 |
|---|---|
| Series | PL-SW-T (touch glass) |
| Channels | 3 |
| Control type | Capacitive touch + LED backlight (brightness OEM option) |
| Network | IEEE 802.11 b/g/n 2.4 GHz only (5 GHz not supported on typical Tuya modules) |
| Local control | Yes (touch) when powered; remote via app/cloud |
| 3-way / multi-way | Not this SKU — request multi-way family separately |
| Dimmer | On/off only; dimmer is separate SKU in family |
| Standby power | <1W class (indicative) |
| IP rating | Indoor dry locations (IP20 class narrative) |
| Back box depth | Confirm ≥35–40 mm free depth for module + wires |
| Compatible loads | LED lamps, CFL, incandescent within rated W; inductive/fan → use fan switch SKU |
All electrical limits are sample placeholders. Production RFQ must quote the factory datasheet for the exact module revision.

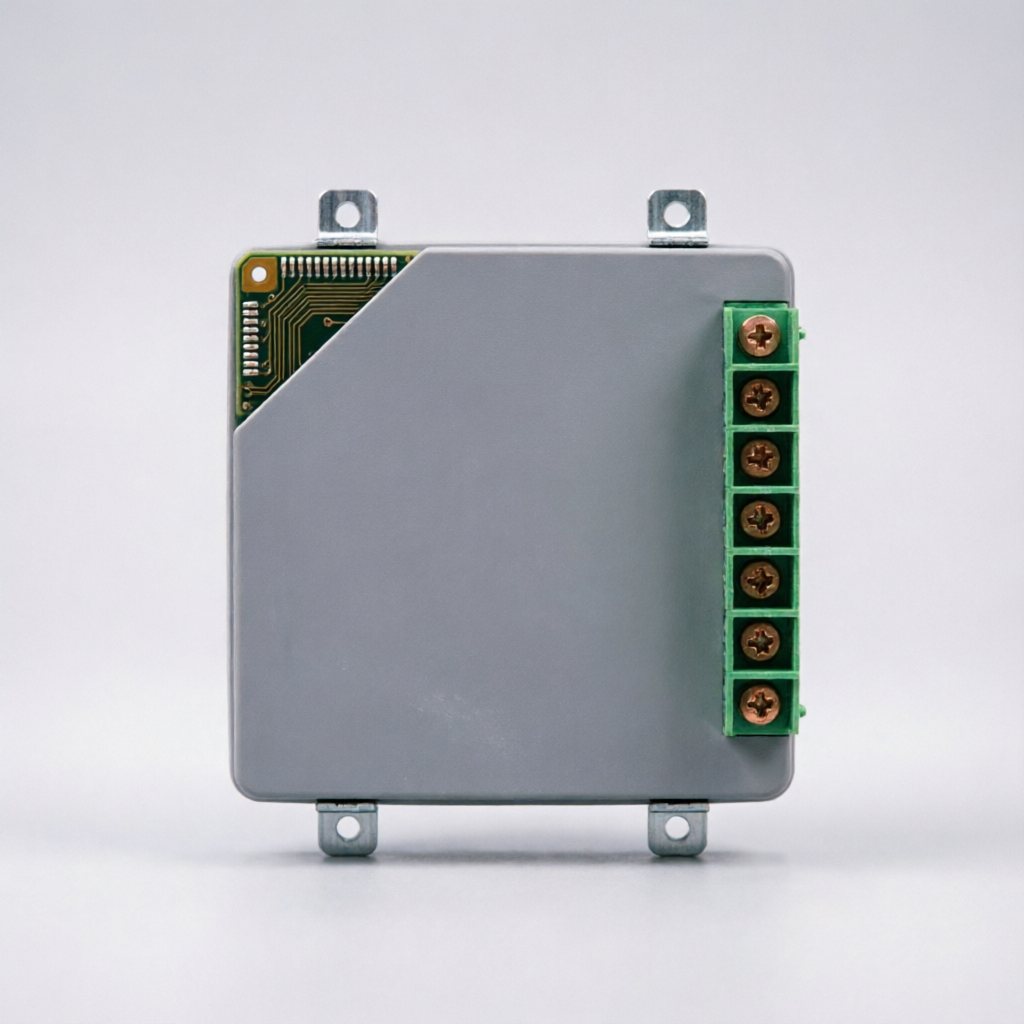

Wiring notes for installers & importers
Neutral preferred
With neutral (N + L + L1/L2/L3): stable for LED loads and status LED. Recommended default for apartment packages.
No-neutral option
Single live (no neutral) variants exist in many Tuya lines but need minimum load or bypass capacitor on some LEDs — always state lamp type and wattage in RFQ. Flicker complaints are the #1 after-sales issue on no-neutral SKUs.
Checklist before mass install
- Verify 2.4 GHz Wi‑Fi coverage at each box location
- Confirm breaker capacity for simultaneous loads
- Photograph existing wiring (EU brown/blue vs US black/white) for factory FAQ
- Do not mix dimmer and on/off modules on the same multi-way loop without design review
Related reading: How to choose a smart wall switch.
App, scenes and voice
Default narrative for this sample SKU is Tuya / Smart Life cloud pairing. Private-label app or white-label OEM is available from some partner factories at higher MOQ — declare brand requirement in RFQ.
- Schedules, timers, device sharing (household)
- Scene linkage with other Tuya devices (gateway not required for pure Wi‑Fi switches)
- Alexa / Google Home skill enablement via the same account stack
- Matter: not native on classic Tuya Wi‑Fi modules unless factory states Matter-over-Wi‑Fi revision — do not promise Matter on this SKU without written confirmation
Compare protocols: Wi‑Fi vs Zigbee wall switches · Protocols overview.
Certifications & QC (trading model)
PanelLink is a trading platform: certificates are matched to the producing factory and SKU. The badges above are capability narratives for prototype UI only.
| Document | When buyers usually ask | How we handle |
|---|---|---|
| CE / LVD / EMC report | EU / many global tenders | Attach per SKU on RFQ reply |
| RoHS | EU / brand retail | Material declaration pack |
| FCC (RF) | North America Wi‑Fi products | Module grant + host guidance |
| Factory ISO 9001 | Chain audit | Partner factory certificate copy |
QC steps (sample narrative)
- Sample approval (function + glass print + packing)
- Production photos / short line video on request
- Outgoing inspection AQL (level agreed in PO)
- Optional third-party inspection before ship
OEM / packing options
- Logo: silk-print / laser on glass; colour white / black / grey
- Backlight colour (where module supports)
- Manual languages: EN + ES / RU / AR / … pack insert
- Gift box vs bulk carton; your barcode and carton marks
- Hotel or project custom icon set (usually on scene-panel SKUs)
Process: brief → sample → mass production. See OEM / ODM.
FAQ
Is this SKU ready for the US market?
This sample is 86-type. For US plates and FCC-focused SKUs, request the US frame series in the same RFQ. Do not assume 86-type fits US boxes.
Can I use it without neutral?
A no-neutral option may be available from partner factories. Confirm lamp type and minimum load; many LED installations need a bypass or should use neutral versions.
Zigbee or Wi‑Fi for apartments?
Wi‑Fi is simpler for small packs without hubs. Zigbee scales better for multi-device rooms and hotels when a gateway is acceptable. See the comparison article.
What is the MOQ?
Sample quantities are low; bulk MOQ depends on factory and OEM print. State target quantity and whether logo print is required.
How do I RFQ this line with scene panels?
Add both SKUs to one RFQ, same frame colour family, same app ecosystem, and target market certs — we consolidate factories into one shipment plan.
